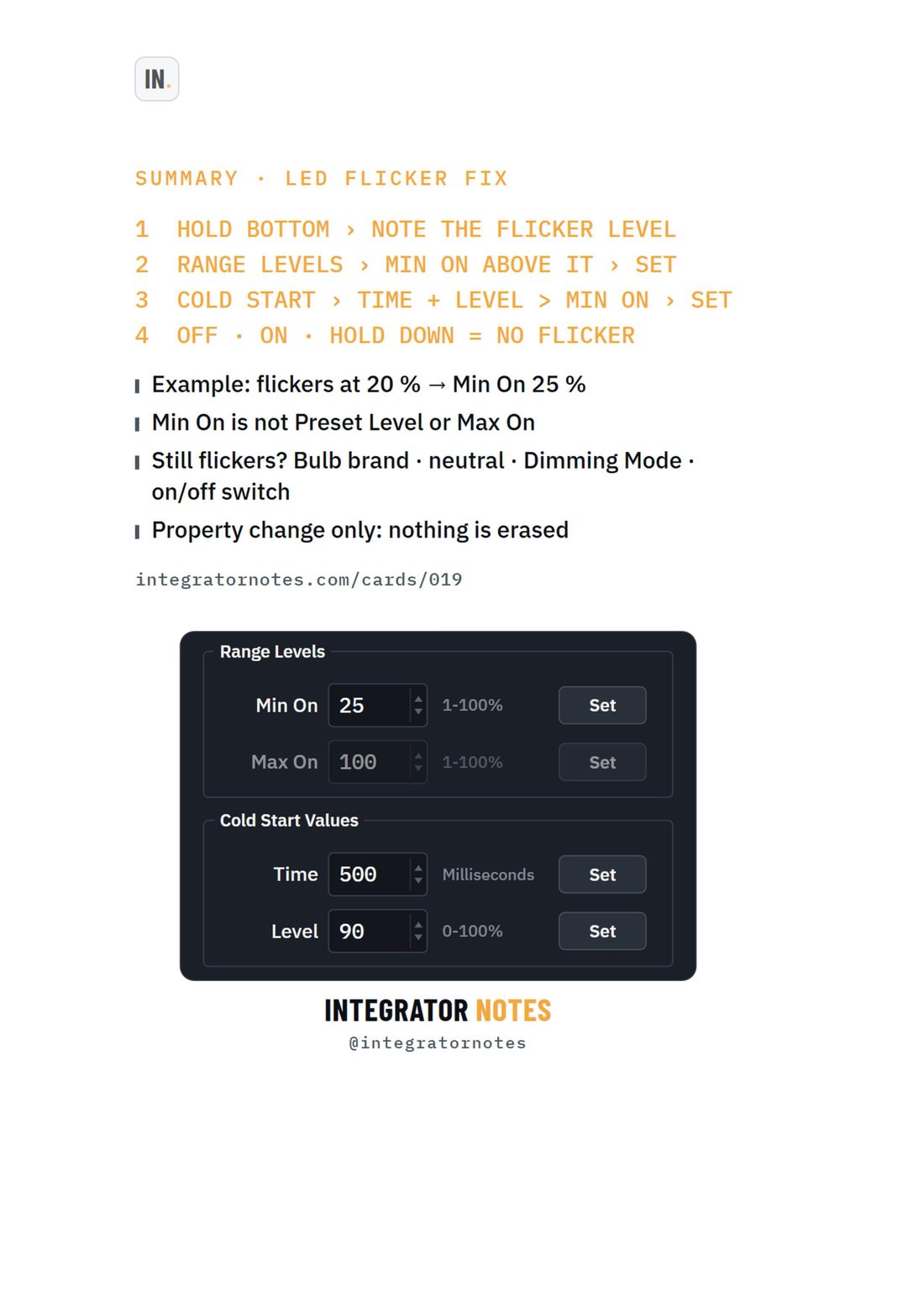

Field card 019, Adaptive phase dimmer (C4-APD120): HOLD BOTTOM › NOTE THE FLICKER LEVEL, RANGE LEVELS › MIN ON ABOVE IT › SET, COLD START › TIME + LEVEL > MIN ON › SET, OFF · ON · HOLD DOWN = NO FLICKER
A4 · PDF · prints in black and white Open full size
Control4TroubleshootingCard 019

Control4 Adaptive phase dimmer (C4-APD120)

LEDs flickering? Set Min On and Cold Start in Composer

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.

The sequence

  1. HOLD BOTTOM › NOTE THE FLICKER LEVEL
  2. RANGE LEVELS › MIN ON ABOVE IT › SET
  3. COLD START › TIME + LEVEL > MIN ON › SET
  4. OFF · ON · HOLD DOWN = NO FLICKER

Good to know

  • Example: flickers at 20 % → Min On 25 %
  • Min On is not Preset Level or Max On
  • Still flickers? Bulb brand · neutral · Dimming Mode · on/off switch
  • Property change only: nothing is erased
Download PDF Print
