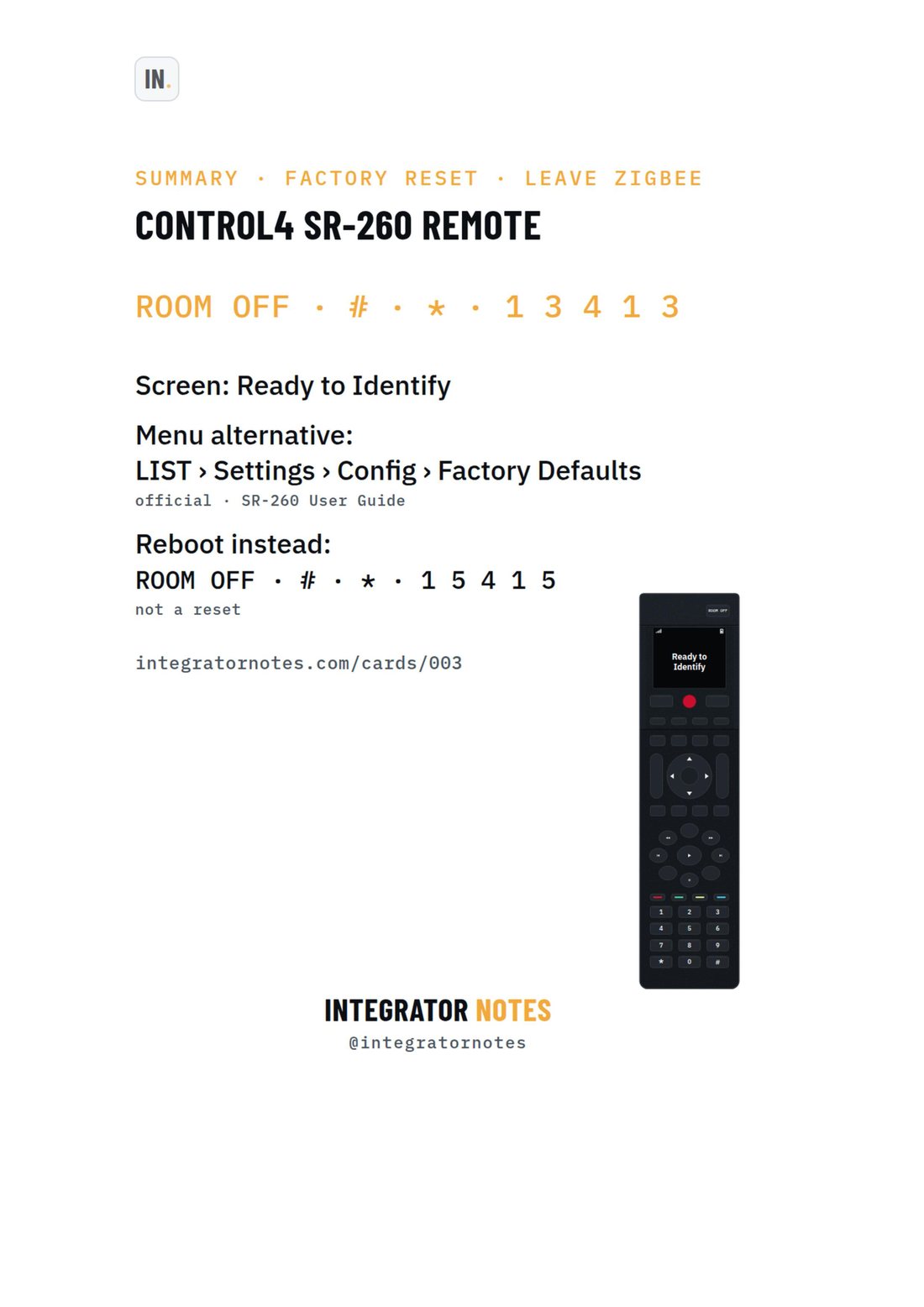

Field card 003, SR-260 system remote: Press ROOM OFF, Then # and *, Then 1 · 3 · 4 · 1 · 3
A4 · PDF · prints in black and white Open full size
Control4Factory resetCard 003

Control4 SR-260 system remote

Factory reset and leave Zigbee

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before a reset you can't undo.

The sequence

  1. Press ROOM OFF
  2. Then # and *
  3. Then 1 · 3 · 4 · 1 · 3
Download PDF Print
