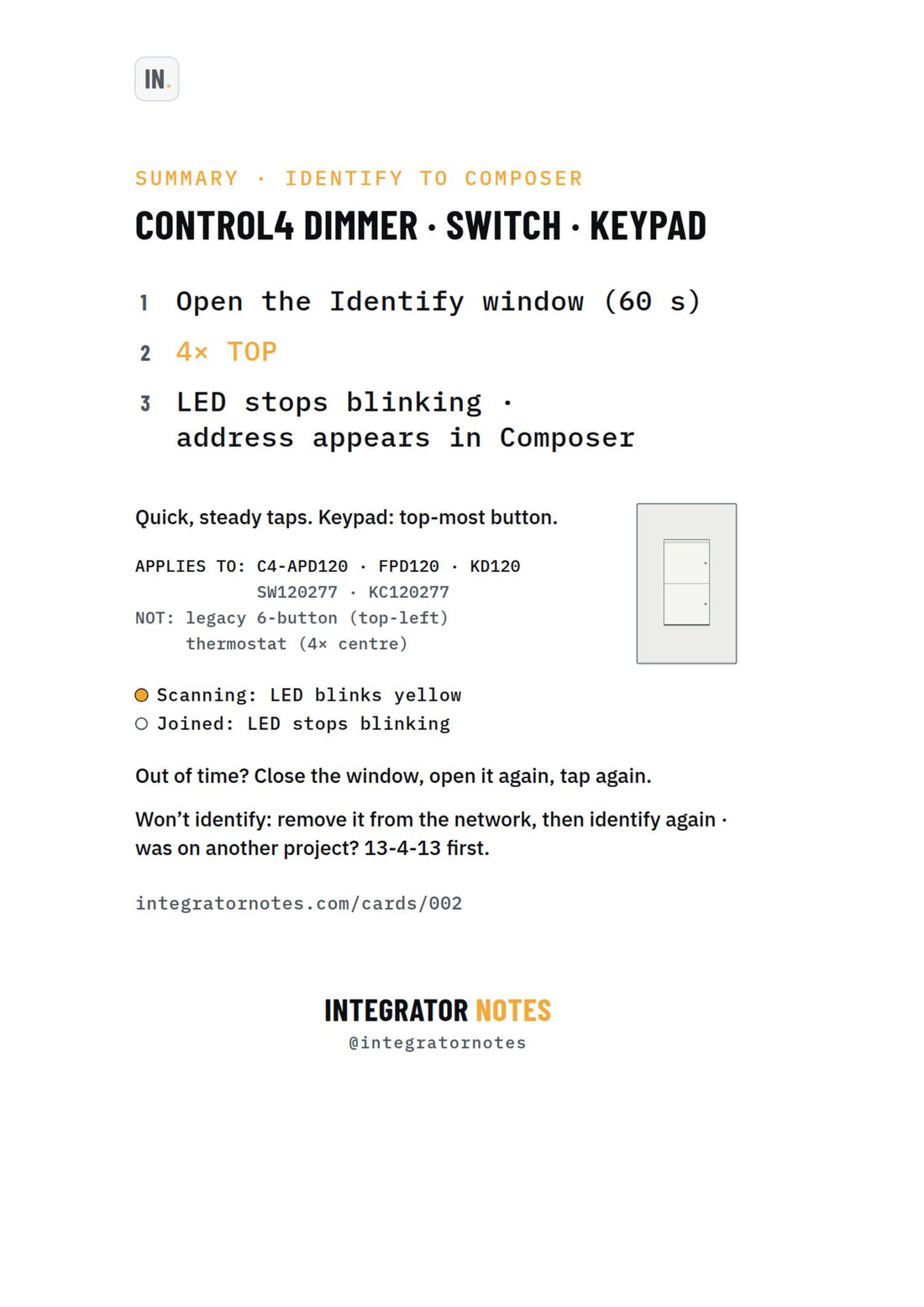

Field card 002, In-wall dimmer · switch · keypad: Tap the TOP button 4×
A4 · PDF · prints in black and white Open full size
Control4IdentifyCard 002

Control4 In-wall dimmer · switch · keypad

Identify to Composer (4× TOP)

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.

The sequence

  1. Tap the TOP button 4×
Download PDF Print
Previous · No. 001In-wall dimmer · switch · keypad

More Control4

  • Field card 001: In-wall dimmer · switch · keypad
    No. 001Control4Factory reset

    In-wall dimmer · switch · keypad

    Leave the Zigbee mesh and reset (13-4-13)

    1. Tap the TOP button 13×
    2. Tap the BOTTOM button 4×
    3. Tap the TOP button 13×
    Bench check pending
  • Field card 003: SR-260 system remote
    No. 003Control4Factory reset

    SR-260 system remote

    Factory reset and leave Zigbee

    1. Press ROOM OFF
    2. Then # and *
    3. Then 1 · 3 · 4 · 1 · 3
    Bench check pending
  • Field card 009: CORE 3 · CORE 5 · EA-5 controller
    No. 009Control4Factory reset

    CORE 3 · CORE 5 · EA-5 controller

    Factory restore with the RESET pinhole

    1. HOLD RESET PINHOLE 5–7 s
    2. SOLID RED → DOUBLE ORANGE = RELEASE
    3. ORANGE FLASHING → OFF → REBOOT
    Bench check pending
