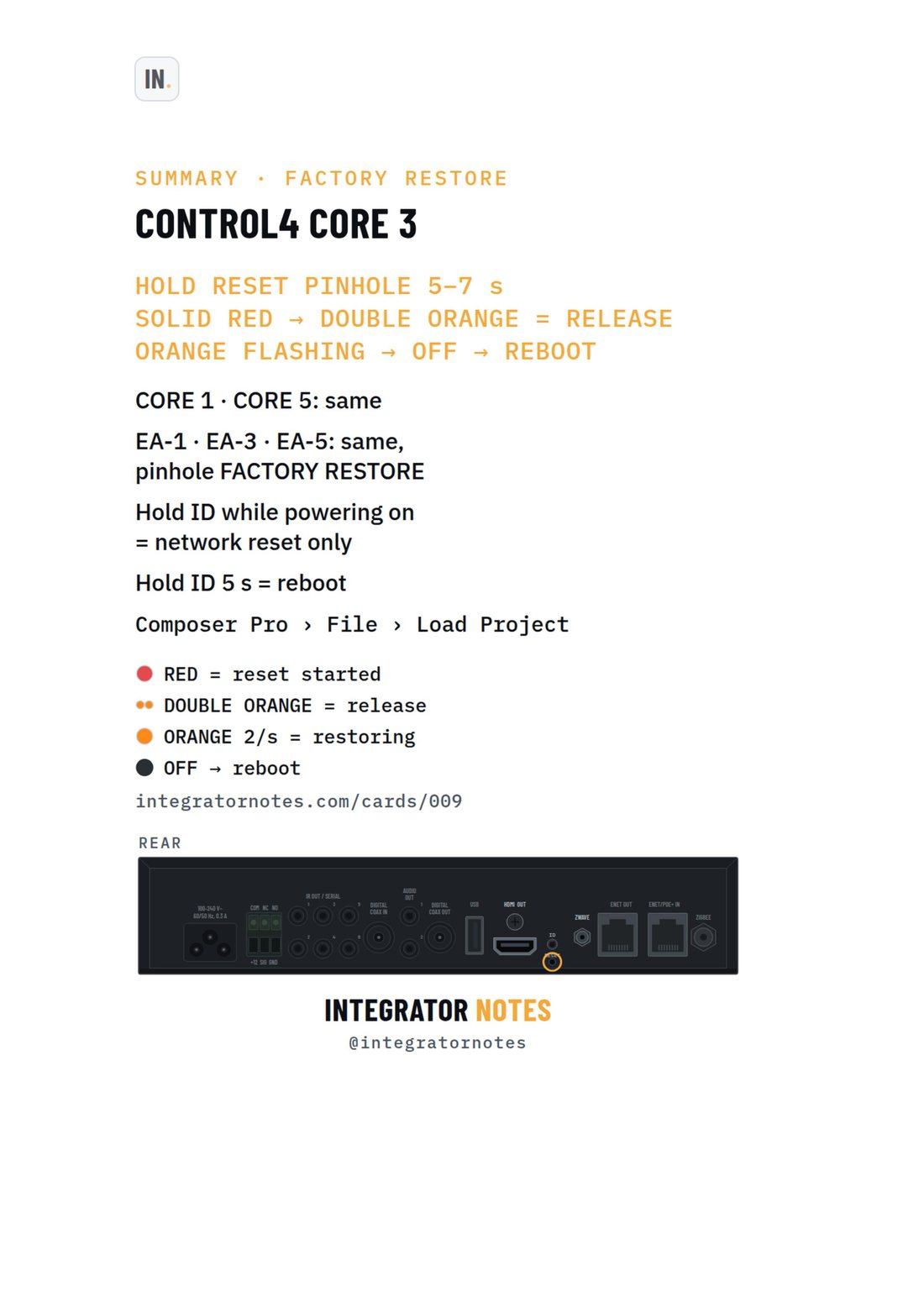

Field card 009, CORE 3 · CORE 5 · EA-5 controller: HOLD RESET PINHOLE 5–7 s, SOLID RED → DOUBLE ORANGE = RELEASE, ORANGE FLASHING → OFF → REBOOT
A4 · PDF · prints in black and white Open full size
Control4Factory resetCard 009

Control4 CORE 3 · CORE 5 · EA-5 controller

Factory restore with the RESET pinhole

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before a reset you can't undo.

The sequence

  1. HOLD RESET PINHOLE 5–7 s
  2. SOLID RED → DOUBLE ORANGE = RELEASE
  3. ORANGE FLASHING → OFF → REBOOT

Good to know

  • CORE 1 · CORE 5: same
  • EA-1 · EA-3 · EA-5: same, pinhole FACTORY RESTORE
  • Hold ID while powering on = network reset only
  • Hold ID 5 s = reboot
  • Composer Pro › File › Load Project
Download PDF Print
