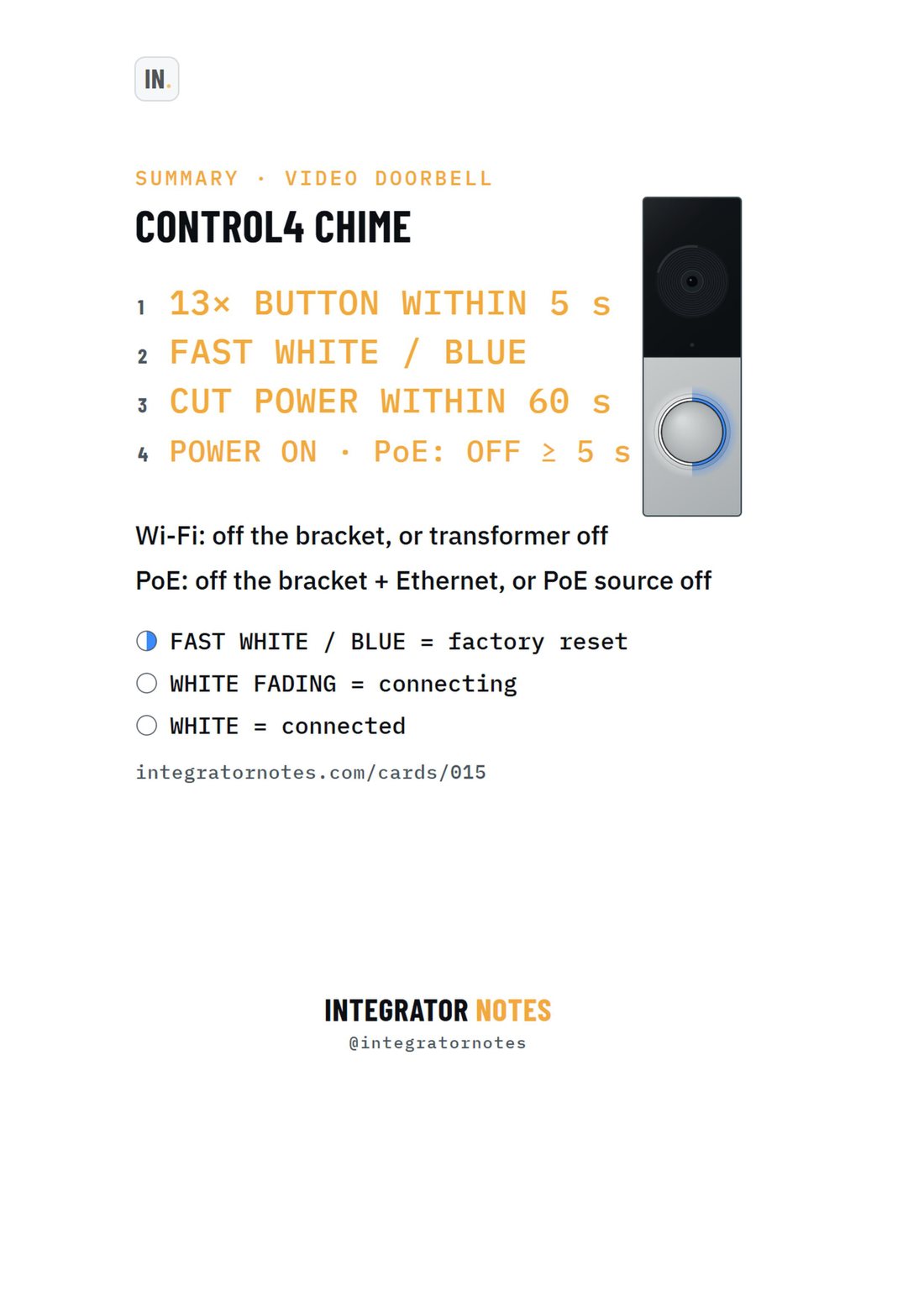

Field card 015, Chime video doorbell: 13× BUTTON WITHIN 5 s, FAST WHITE / BLUE, CUT POWER WITHIN 60 s, POWER ON · PoE: OFF ≥ 5 s
A4 · PDF · prints in black and white Open full size
Control4Factory resetCard 015

Control4 Chime video doorbell

Factory reset (13× in 5 s) — no Composer needed

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before a reset you can't undo.

The sequence

  1. 13× BUTTON WITHIN 5 s
  2. FAST WHITE / BLUE
  3. CUT POWER WITHIN 60 s
  4. POWER ON · PoE: OFF ≥ 5 s

Good to know

  • Wi-Fi: off the bracket, or transformer off
  • PoE: off the bracket + Ethernet, or PoE source off
