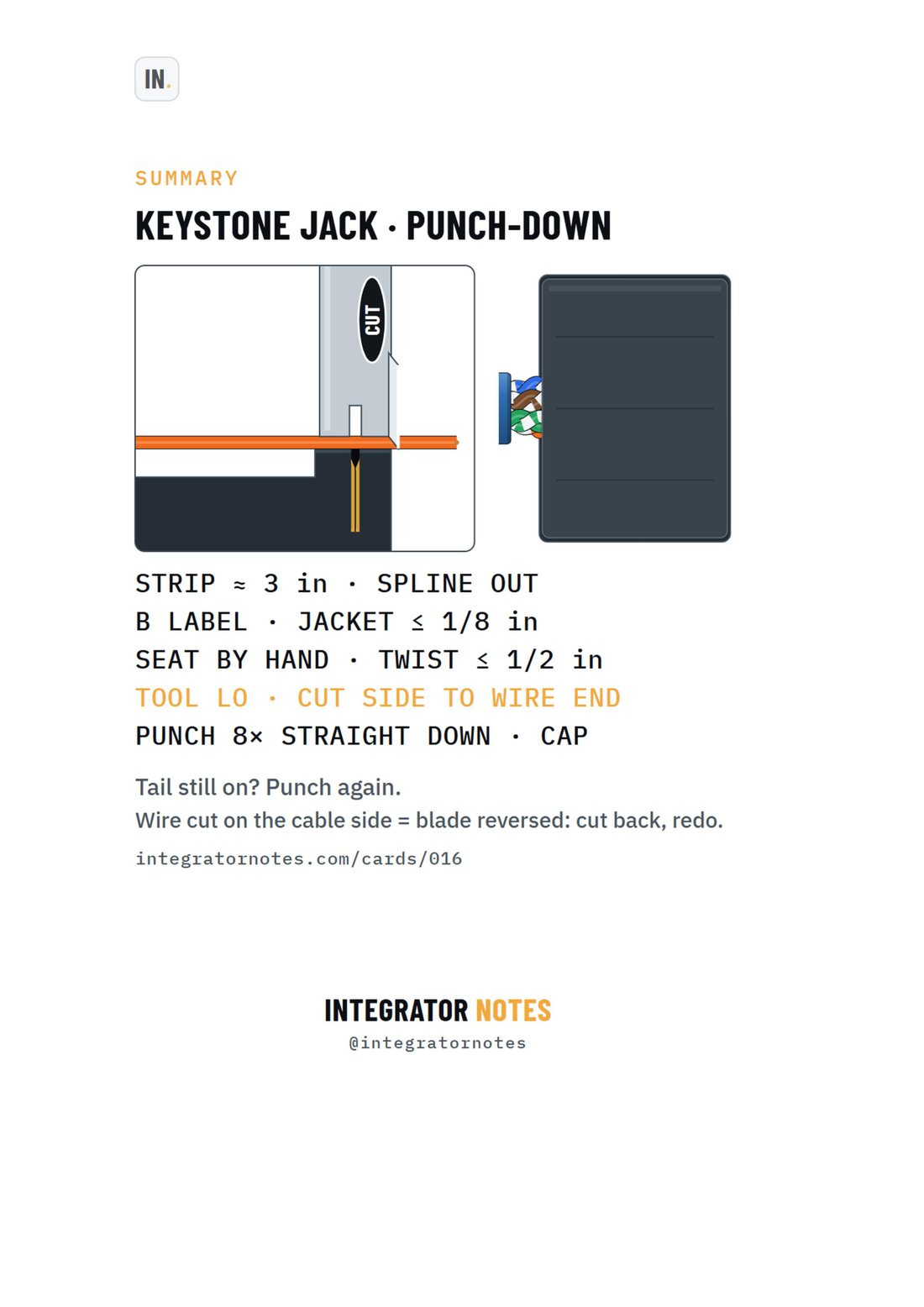

Leviton Cat6 keystone (61110)
Punch down without cutting the wire
Bench check pending
Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.
The sequence
- STRIP ≈ 3 in · SPLINE OUT
- B LABEL · JACKET ≤ 1/8 in
- SEAT BY HAND · TWIST ≤ 1/2 in
- TOOL LO · CUT SIDE TO WIRE END
- PUNCH 8× STRAIGHT DOWN · CAP
Good to know
- Tail still on? Punch again.
- Wire cut on the cable side = blade reversed: cut back, redo.
