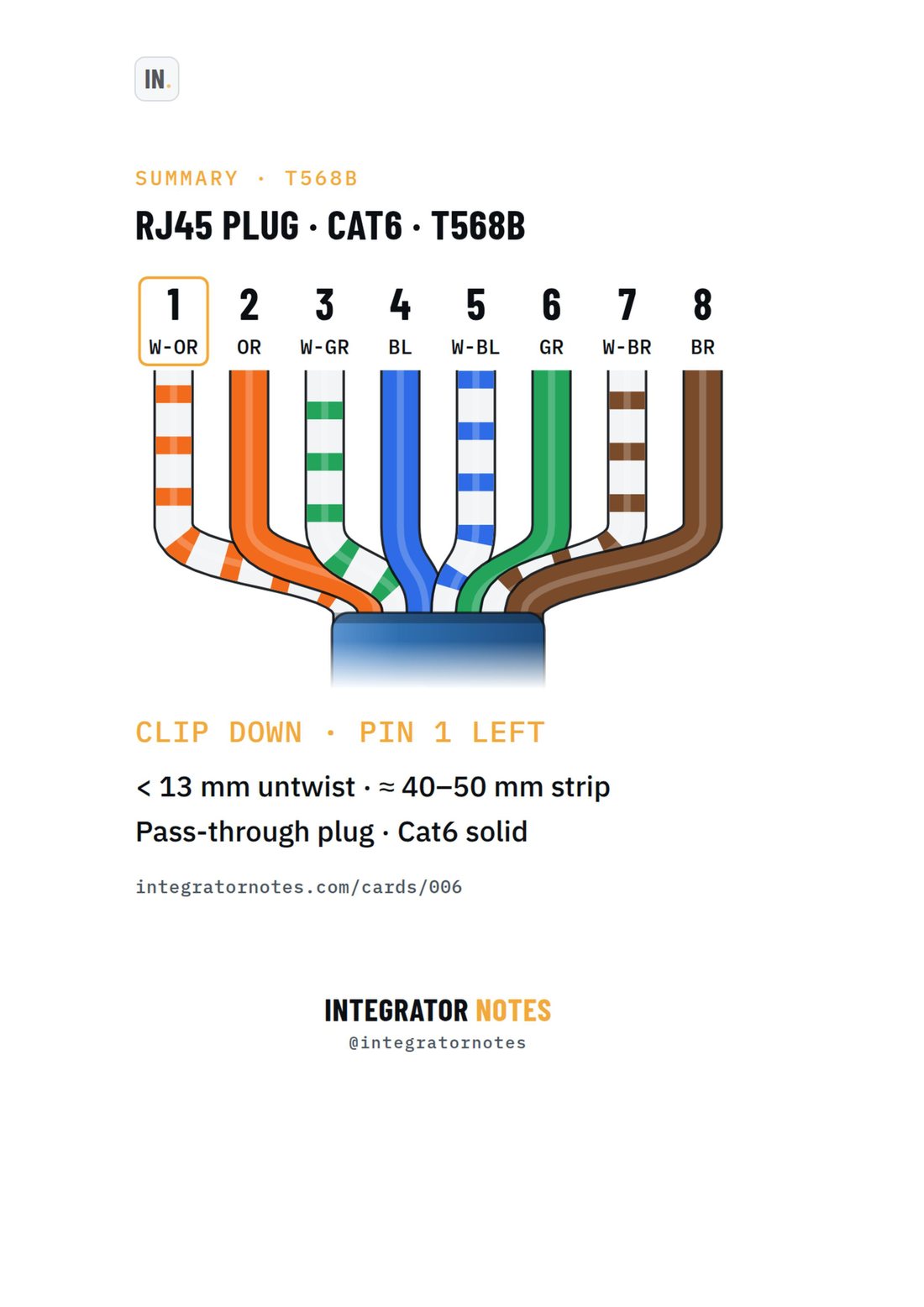

Field card 006, RJ45 plug · Cat6 · T568B: STRIP · UNTWIST · T568B · PUSH · CRIMP · TEST
A4 · PDF · prints in black and white Open full size
CablingTerminationCard 006

RJ45 plug · Cat6 · T568B

Pass-through crimp in 45 seconds

Type
Termination
Video
Watch on YouTube · 0:45
Field card
No. 006 · A4 PDF

The video

Watch on YouTube0:45Published 2026-10-06

Before you start

  • Cat6 solid · pass-through plug rated for solid.
  • Pass-through crimper: it trims the ends. A standard crimper can't finish it.
  • Tester at hand.

Steps

  1. Strip 40–50 mm of jacket

    RING TOOL · 1.5–2 IN DON'T NICK THE WIRES

  2. Cut the spline, untwist the pairs

    UNTWIST AS LITTLE AS YOU CAN

  3. Order T568B, flatten

    CLIP DOWN · PIN 1 LEFT < 13 mm UNTWIST

  4. Trim square, push through the plug

    JACKET UNDER THE BAR WIRES OUT THE FRONT

  5. Crimp until it clicks

    CRIMPER TRIMS THE ENDS

  6. Test 1 to 8 in order

    1 2 3 4 5 6 7 8 · NO SKIPS

How you know it worked

  • Tester lights 1–8 in order
  • Jacket held under the strain-relief bar

If it didn't work

  • If a light skips: recrimp a new plug, check the order

Full sequence

STRIP · UNTWIST · T568B · PUSH · CRIMP · TEST

Notes from the card

  • CLIP DOWN · PIN 1 LEFT
  • < 13 mm untwist · ≈ 40–50 mm strip
  • Pass-through plug · Cat6 solid
