Field card 028, 5.1 speaker system: L · C · R · SR · SL · SW · PAN

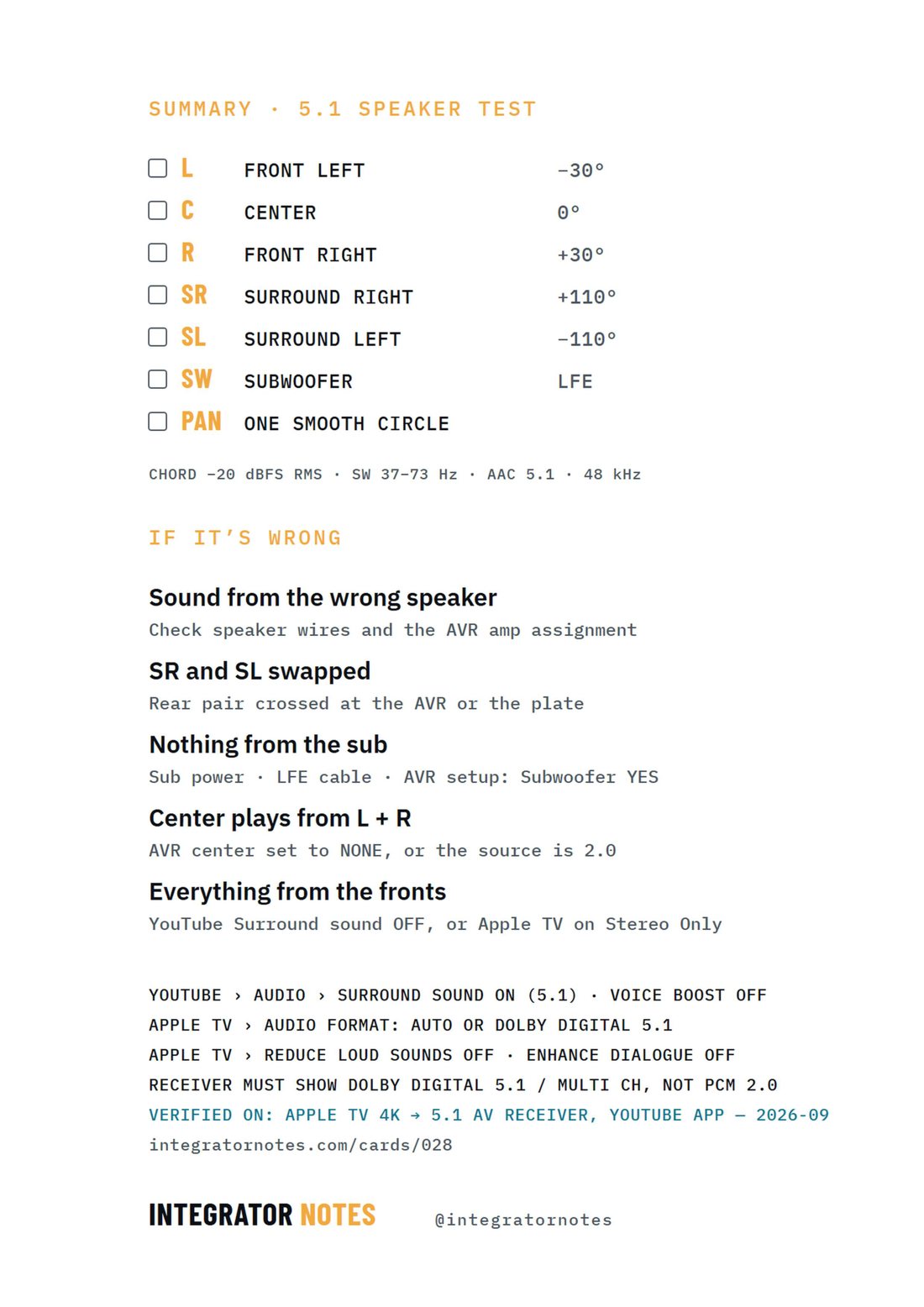

A4 · PDF · prints in black and white Open full size
Home theaterTestCard 028

5.1 speaker system

Test every 5.1 channel, one at a time: L C R SR SL SW + pan

Verified on Apple TV 4K → 5.1 AV receiver, YouTube app — 2026-09-30

New install or moved a speaker? Every 5.1 channel, one at a time, with the level measured on screen — in 60 seconds.

Type
Test
Video
Watch on YouTube · 1:03
Field card
No. 028 · A4 PDF

The video

Watch on YouTube1:03Published 2026-09-30

Before you start

  • Play this from a TV app: Apple TV · Roku · Fire TV · console
  • YouTube player › Audio: Surround sound ON (5.1) · Voice boost OFF
  • Apple TV › Audio Format: Auto or Convert to Dolby Digital 5.1
  • Apple TV › Video and Audio: Reduce Loud Sounds OFF · Enhance Dialogue OFF
  • Receiver display must read: DOLBY DIGITAL 5.1 or MULTI CH

Steps

  1. Front left

    You should hear: sound from this speaker only (front, left of the screen)

  2. Center

    You should hear: sound from this speaker only (at the screen)

  3. Front right

    You should hear: sound from this speaker only (front, right of the screen)

  4. Surround right

    You should hear: sound from this speaker only (beside or behind you, right)

  5. Surround left

    You should hear: sound from this speaker only (beside or behind you, left)

  6. Subwoofer

    You should hear: sound from this speaker only (the sub only)

  7. Pan check: one smooth circle

If it didn't work

  • Sound from the wrong speaker → Check speaker wires and the AVR amp assignment
  • SR and SL swapped → Rear pair crossed at the AVR or the plate
  • Nothing from the sub → Sub power · LFE cable · AVR setup: Subwoofer YES
  • Center plays from L + R → AVR center set to NONE, or the source is 2.0
  • Everything from the fronts → YouTube Surround sound OFF, or Apple TV on Stereo Only

Full sequence

L · C · R · SR · SL · SW · PAN
