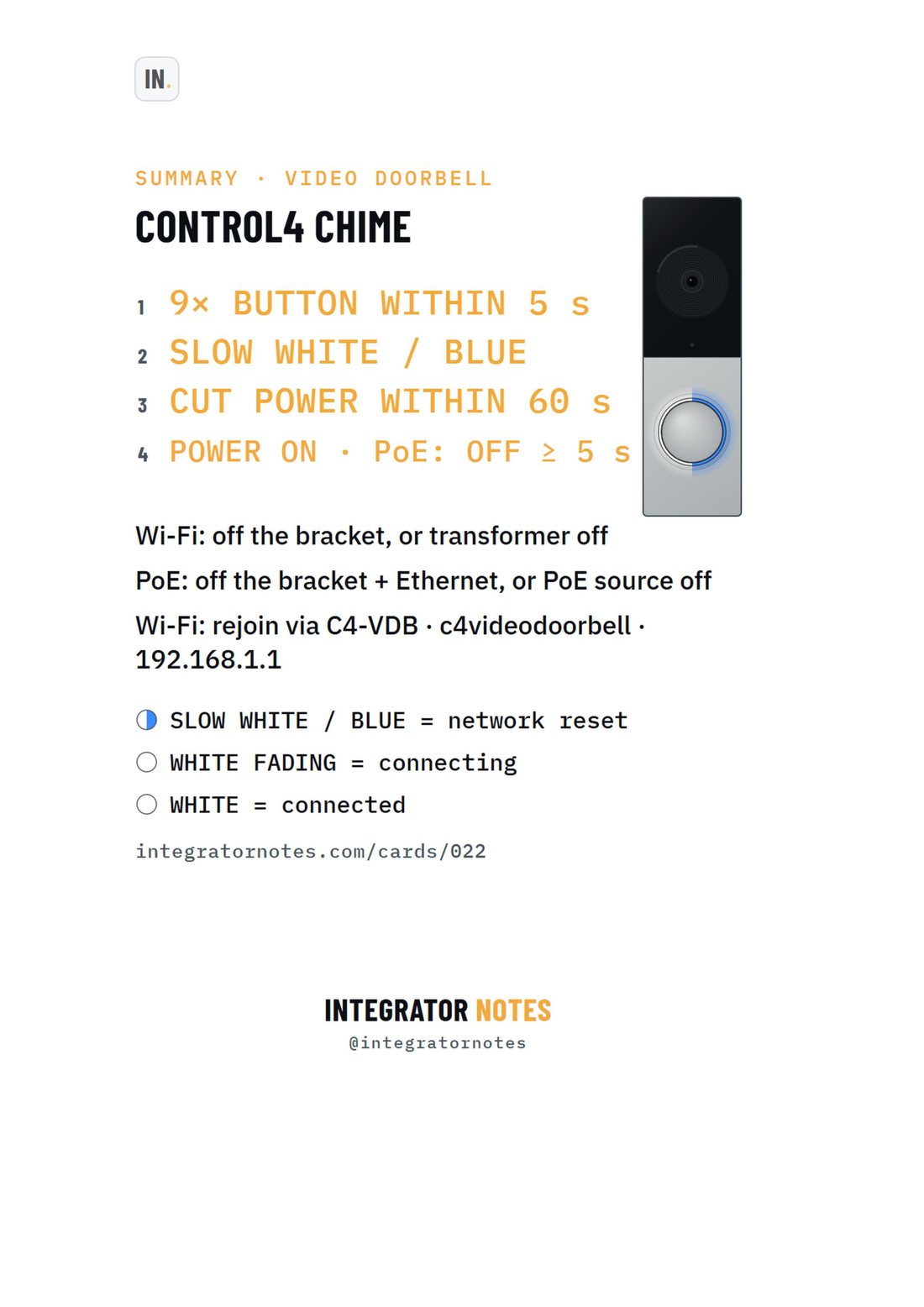

Field card 022, Chime video doorbell: 9× BUTTON WITHIN 5 s, SLOW WHITE / BLUE, CUT POWER WITHIN 60 s, POWER ON · PoE: OFF ≥ 5 s
A4 · PDF · prints in black and white Open full size
Control4TroubleshootingCard 022

Control4 Chime video doorbell

Network reset (9× in 5 s) — no factory reset

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.

The sequence

  1. 9× BUTTON WITHIN 5 s
  2. SLOW WHITE / BLUE
  3. CUT POWER WITHIN 60 s
  4. POWER ON · PoE: OFF ≥ 5 s

Good to know

  • Wi-Fi: off the bracket, or transformer off
  • PoE: off the bracket + Ethernet, or PoE source off
  • Wi-Fi: rejoin via C4-VDB · c4videodoorbell · 192.168.1.1
Download PDF Print
